The GDPR RAG Assistant is a production-style, evaluation-first Retrieval-Augmented Generation (RAG) chatbot that answers questions about the EU GDPR using a vectorized corpus of Articles and Recitals.

The system is designed to:

Return grounded answers with citations to specific GDPR Articles/Recitals
Gracefully fall back when the dataset doesn’t contain the answer
Handle off-topic questions neutrally (no fake citations)
Be fully evaluated (retriever + generator + routing) using offline metrics and online LLM-as-a-judge pipelines

Tech highlights:

Backend: FastAPI · Python 3.10+ · Azure OpenAI (GPT-4o) · Azure AI Search
RAG Core: Three-tier routing logic (Grounded → Hybrid → Off-topic)
Frontend: Lightweight SPA (HTML/CSS/JS) with citations and a 3D retrieval viz (Plotly)
Deploy: Docker · GitHub Container Registry (GHCR) · Azure Container Apps · GitHub Actions CI/CD
Evaluation: Custom offline evaluation harness + Giskard + RAGAS for online RAG evaluation

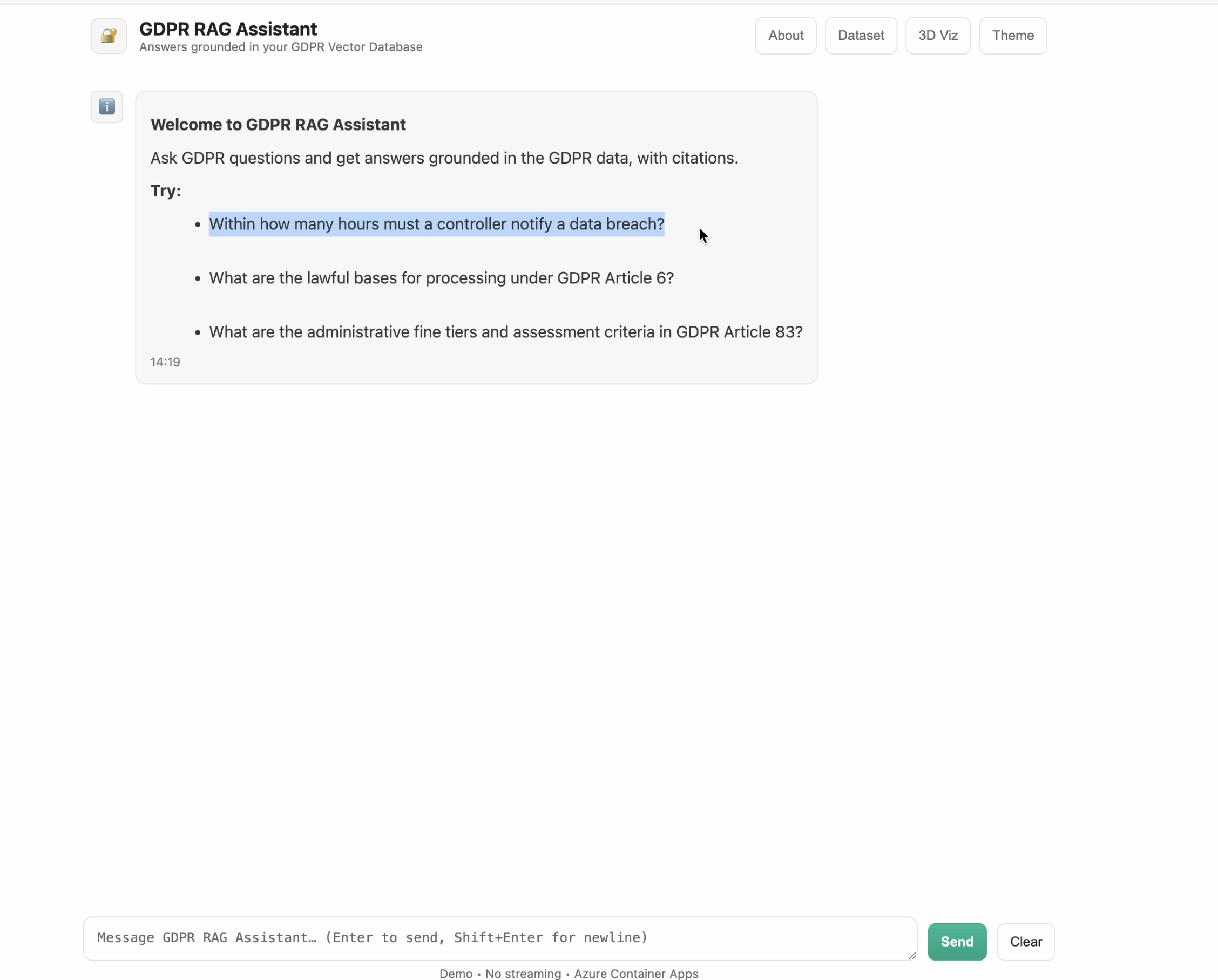

GDPR RAG Assistant – Chat UI with GDPR citations and dataset panel.

1. Problem Statement

Goal: Build a GDPR assistant that:

Answers questions using actual GDPR law text (Articles + Recitals),
Is honest about missing coverage,
Is guarded against hallucinations and off-topic answers, and
Can be measured and improved using a proper evaluation pipeline.

Most GDPR “chatbots” simply send the question to an LLM.
This project explores how to build a domain-specific, evaluation-driven RAG system that could realistically support privacy officers, lawyers, and compliance teams.

2. Demo

A short walkthrough of the deployed MVP is available on YouTube:

🎥 Demo video: GDPR RAG Assistant – Azure Container Apps Deployment

The demo shows:

How questions are routed through the three-tier RAG logic
How citations to GDPR Articles/Recitals are displayed
The 3D visualization of retrieved chunks for the last question

3. Architecture & Tech Stack

Core components:

Backend:
- FastAPI for the API and static file serving
- Azure OpenAI (GPT-4o) for generation and embeddings
- Azure AI Search as the vector search backend for GDPR chunks
RAG Core (app/rag.py):
- Intent classification / routing
- Retrieval using Azure AI Search
- Branching into grounded, hybrid, or off-topic answers
- Answer formatting with structured Source objects (article id, title, snippet, score)
Frontend (web/):
- Minimalist SPA (HTML + CSS + vanilla JS)
- Chat interface, copy-to-clipboard, “Jump to latest” helper
- Dataset & About panels
- 3D Plotly visualization of retrieved chunks on a unit sphere using acos(similarity) as angles
Deployment:
- Docker image for the FastAPI + static SPA
- Image published to GitHub Container Registry (GHCR)
- Hosted as an Azure Container App (2 vCPU / 4 GB recommended)
- Automated CI/CD pipeline via GitHub Actions (build → push → deploy)

4. Three-Tier RAG Logic

The heart of the system is a three-tier RAG flow:

Grounded Answer (GDPR Dataset)
- Retrieve top-K chunks from Azure AI Search
- Answer only using retrieved context
- If the dataset doesn’t explicitly contain an answer, emit a sentinel string (“no answer from dataset”)
Hybrid GDPR Guidance
- Triggered when retrieval is weak or the sentinel is emitted
- Clearly states that no direct answer was found in the dataset
- Provides a concise expert-style explanation, still labeled as guidance
Off-topic Neutral Answer
- For non-GDPR questions
- Returns a short, factual reply with no GDPR citations
- Prevents the system from giving legal-looking answers on irrelevant topics

Entrypoints:

Backend: app/main.py → /api/chat → rag_answer()
RAG core: app/rag.py (classification → retrieval → branch → answer)

The assistant is powered by the GDPR Articles & Recitals dataset:

Hugging Face: AndreaSimeri/GDPR
99 Articles across 11 chapters
173 Recitals providing interpretive context

Example:
Article 7(2) (Conditions for consent) is interpreted with Recital 42 which clarifies:

Proof of consent
Identity of the controller
Purpose of the processing

The frontend’s Dataset panel links to:

The Hugging Face dataset
The original paper:

Simeri, A. and Tagarelli, A. (2023). GDPR Article Retrieval based on Domain-adaptive and Task-adaptive Legal Pre-trained Language Models. LIRAI 2023 (CEUR Vol. 3594), pp. 63–76.

6. Running the System

Prerequisites:

Python 3.10+
Azure subscription with:
- Azure OpenAI (chat + embedding deployments)
- Azure AI Search (index loaded with GDPR chunks)

Configuration

Runtime configuration is centralized in app/settings.py and read from environment variables:

AZURE_OPENAI_ENDPOINT=
AZURE_OPENAI_KEY=
AZURE_OPENAI_API_VERSION=
AZURE_OPENAI_CHAT_DEPLOYMENT=
AZURE_OPENAI_EMBEDDING_DEPLOYMENT=
AZURE_SEARCH_ENDPOINT=
AZURE_SEARCH_API_KEY=
AZURE_SEARCH_INDEX_NAME=

Optional tuning knobs:

TOP_K=4
TEMPERATURE=0.2
MAX_TOKENS=800

For local dev: create a .env file (loaded via python-dotenv). In Azure Container Apps: set these as environment variables / secrets.

Local Run

uvicorn app.main:app --reload --port 8000
# Visit: http://127.0.0.1:8000

The SPA is served from web/index.html via /static.

7. Deployment on Azure Container Apps

Local Docker build & run:

docker build -t gdpr-rag:latest .
docker run --rm -p 8000:8000 \
  --env-file .env \
  gdpr-rag:latest

Push to GitHub Container Registry (GHCR):

docker tag gdpr-rag:latest ghcr.io/<org-or-user>/gdpr-rag:latest
docker push ghcr.io/<org-or-user>/gdpr-rag:latest

Create Azure Container App (high level):

az containerapp env create -g <rg> -n <env-name> --location <region>

az containerapp create -g <rg> -n gdpr-rag \
  --image ghcr.io/<org-or-user>/gdpr-rag:latest \
  --environment <env-name> \
  --target-port 8000 --ingress external \
  --env-vars \
    AZURE_OPENAI_ENDPOINT=... \
    AZURE_OPENAI_KEY=secretref:AZURE_OPENAI_KEY \
    AZURE_OPENAI_API_VERSION=... \
    AZURE_OPENAI_CHAT_DEPLOYMENT=... \
    AZURE_OPENAI_EMBEDDING_DEPLOYMENT=... \
    AZURE_SEARCH_ENDPOINT=... \
    AZURE_SEARCH_API_KEY=secretref:AZURE_SEARCH_API_KEY \
    AZURE_SEARCH_INDEX_NAME=...

The repository includes guidance on:

Creating a GitHub PAT for GHCR
Creating an Azure Service Principal for CI/CD
Resource sizing (2 vCPU / 4 GB RAM) and common deployment gotchas

8. API Design

Primary endpoint:

POST /api/chat

Sample request:

{
  "message": "Within how many hours must a controller notify a data breach?"
}

Sample response:

{
  "answer": "The controller must notify ... not later than 72 hours ... (Article 33).",
  "sources": [
    {
      "article_id": "33",
      "article_title": "Notification of a personal data breach to the supervisory authority",
      "chunk_id": 12,
      "snippet": "…",
      "score": 0.78
    }
  ]
}

Pydantic models are defined in app/schemas.py:

ChatRequest { message: str }
Source { article_id, article_title, chunk_id, snippet, score }
ChatResponse { answer: str, sources: Source[] }

9. Evaluation & Testing

This project is explicitly evaluation-first. It includes both offline and online evaluation components.

9.1 Offline Evaluation (Custom Harness)

A Python evaluation pipeline generates an HTML report with retrieval & answering metrics.

Key metrics (N = 50 GDPR Q/A pairs):

Retrieval
- Recall@K ≈ 0.96
- MRR ≈ 0.93
- Mean top-1 similarity ≈ 0.75 (p50 ≈ 0.76, p90 ≈ 0.82)
Answering
- Exact Match (EM) = 0.0 (due to strict legal phrasing)
- Token-level F1 ≈ 0.66
Groundedness & Routing
- Groundedness (when grounded) ≈ 0.96
- Routing: 100% of this eval set passed through the grounded route
Latency
- Average end-to-end latency ≈ 2.19 s
- p95 latency ≈ 4.63 s (Azure Container Apps)

Visuals include retrieval metrics, top-1 score distribution, F1 by route, and latency.

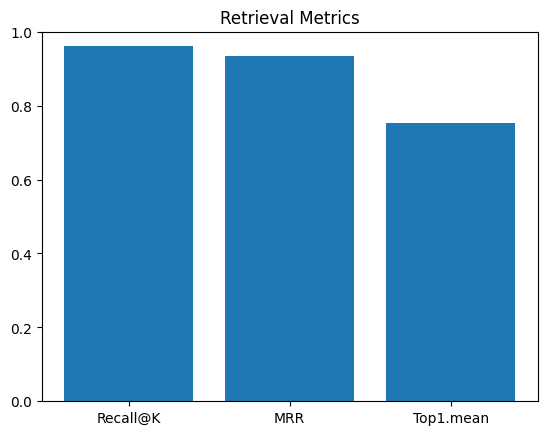

Retrieval metrics visualization (offline evaluation).

9.2 Online Evaluation (Giskard + RAGAS)

To evaluate the deployed system, the project integrates:

Giskard LLM Evaluation for:
- Generator correctness
- Retriever correctness
- Rewriter & router behavior
- Safety scans (harmfulness, prompt injection, stereotypes)
RAGAS metrics (LLM-as-a-judge) for:
- answer_correctness
- faithfulness / groundedness
- context_precision, context_recall, context_relevancy
- answer_relevancy

This online evaluation:

Confirms good routing behavior (on-topic vs off-topic)
Surfaces weak areas (e.g. query rewriting, missing topic coverage such as DPIA & some data subject rights)
Feeds directly into the backlog: better chunking, enriched KB, stronger safety prompts

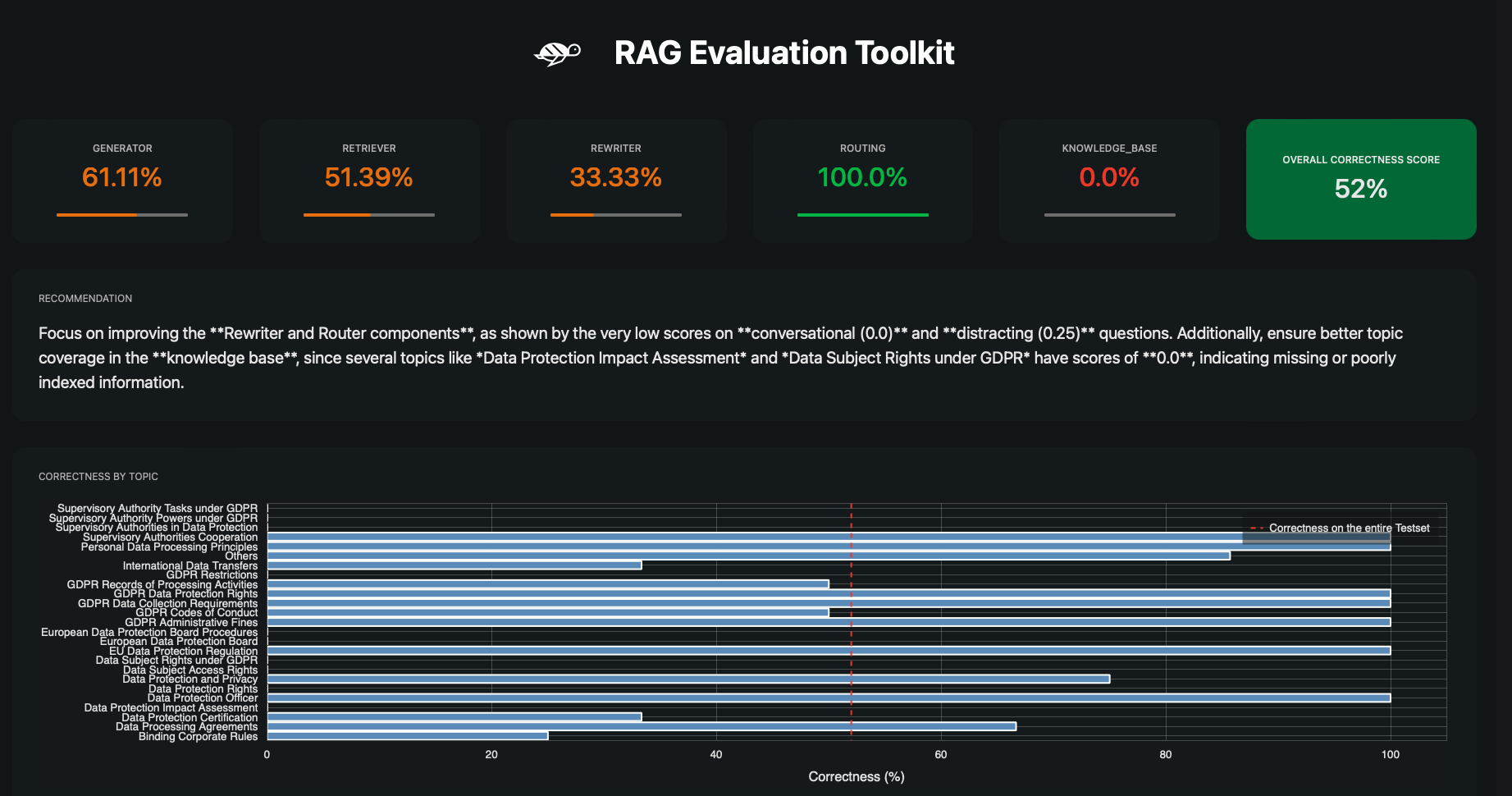

Online RAG evaluation with Giskard and RAGAS

Online RAG evaluation – Giskard + RAGAS metrics dashboard.

Knowledge Base Visualization and RAG evaluation with RAGAS

Online RAG evaluation – RAGAS metrics + Knowledge Base Visualization dashboard.

10. Raised PR to Contribute to Giskard

During integration with RAGAS 0.3.9, two breaking issues appeared in Giskard’s RAG stack:

RagasLLMWrapper was missing an is_finished() implementation → abstract-class instantiation errors
Giskard still used the old .score() API, which was removed in RAGAS 0.3.9

Fixes contributed:

Implemented is_finished() in RagasLLMWrapper to comply with BaseRagasLLM
Updated Giskard’s RAGAS integration to use the new SingleTurnSample + single_turn_score(...) API
Added a compatibility fallback for older RAGAS versions
Submitted a reproducible test script + PR following contribution guidelines

As a result, Giskard now works smoothly with RAGAS 0.3.9 and Azure OpenAI in RAG evaluation pipelines like this one.

11. Roadmap

Some planned extensions include:

/healthz and /metrics endpoints (Prometheus-friendly)
Inline citations auto-tagging (e.g. [Article X] in the answer text)
Hybrid retrieval (lexical + vector) on Azure AI Search
More standardized evaluation scripts (/scripts/eval.py) with a reusable gold Q/A set

12. Resources

💻 GitHub Repository: https://github.com/BharAI-Lab/rag_azure_fastapi
📺 Demo Video: https://www.youtube.com/watch?v=jpLyntoomu4
📄 Offline Evaluation Report (HTML): Generated under docs/report.html from the evaluation pipeline

13. Closing Thoughts

This project is less about “wrapping GPT in a chat UI” and more about:

Treating RAG as a measurable system (retrieval, context use, generation, routing, safety),
Designing for transparent, citation-backed answers in a legal domain,
And using evaluation as the main driver for iteration.

The same architecture and evaluation approach can be adapted to:

Financial regulations
Clinical/pharma documentation
Enterprise knowledge bases with strong compliance requirements

If it’s not evaluated, it’s just a demo. The GDPR RAG Assistant is a concrete step towards trustworthy, observable, and improvable RAG systems.
